| Year | 1978 |
|---|---|
| Make | Haeusler |
| Model | VRM-HY |
Description |
1 1/2" x 12' Four Roll Plate Roll |
| Reference # | 8070329 |

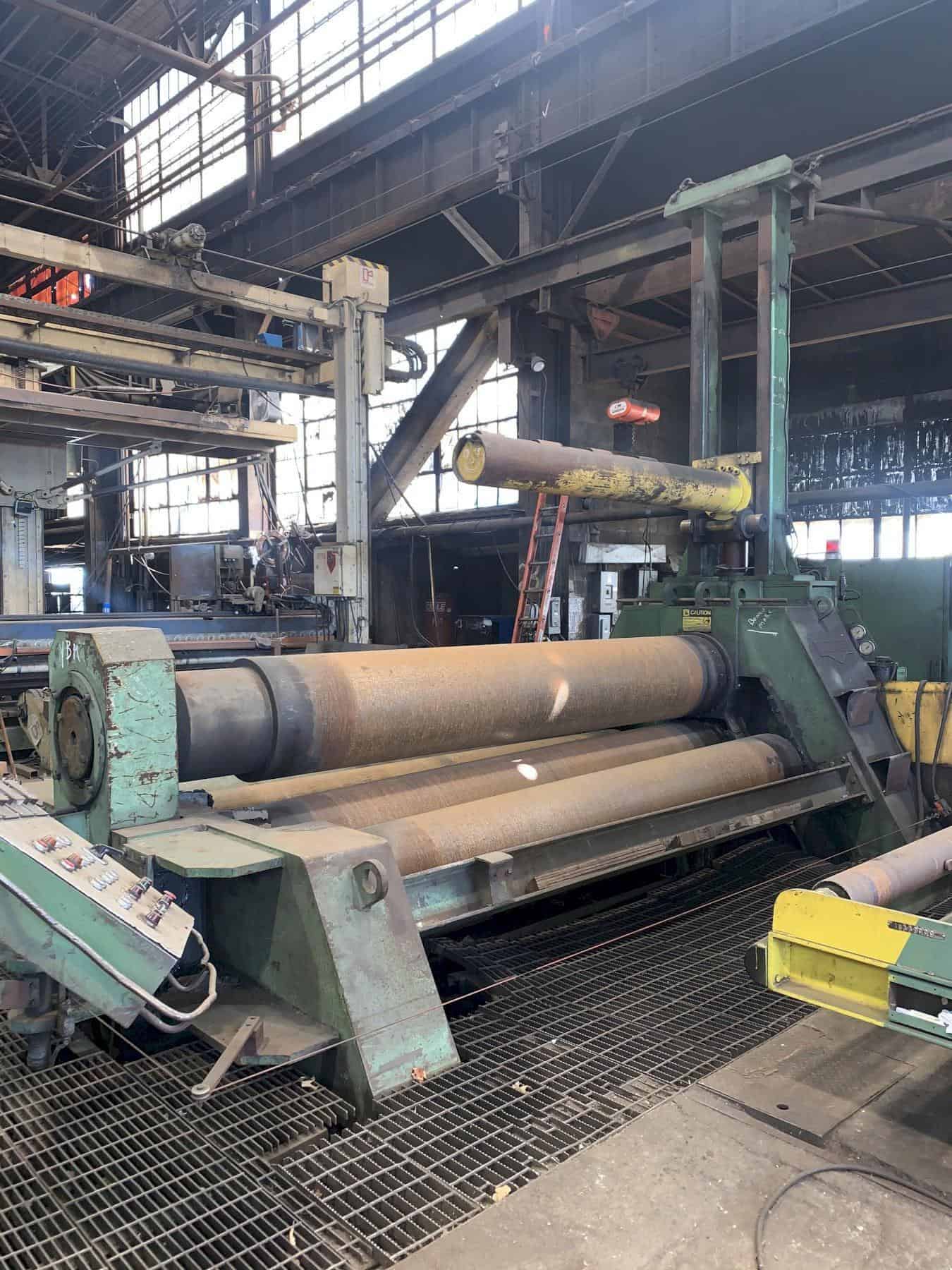

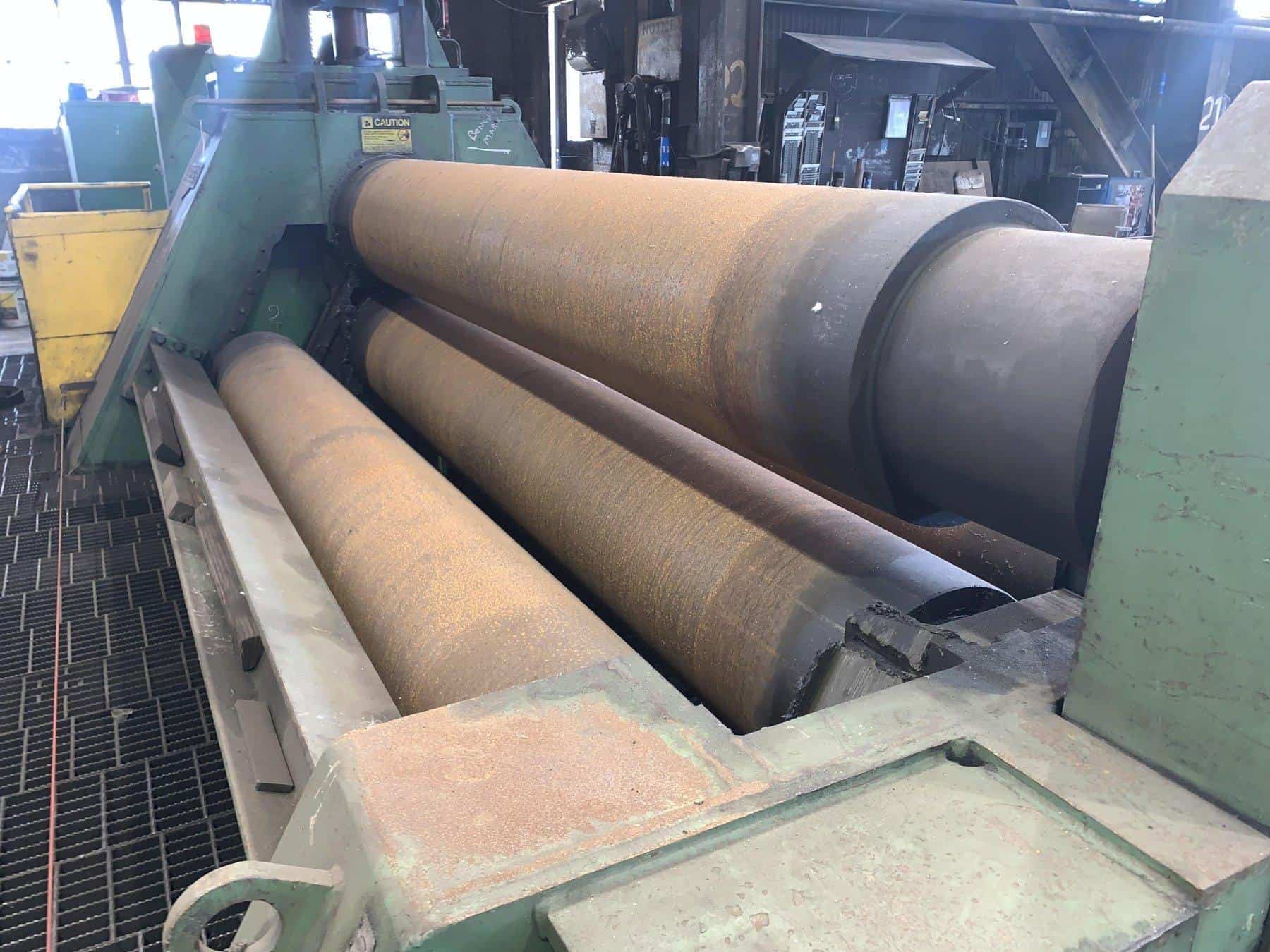

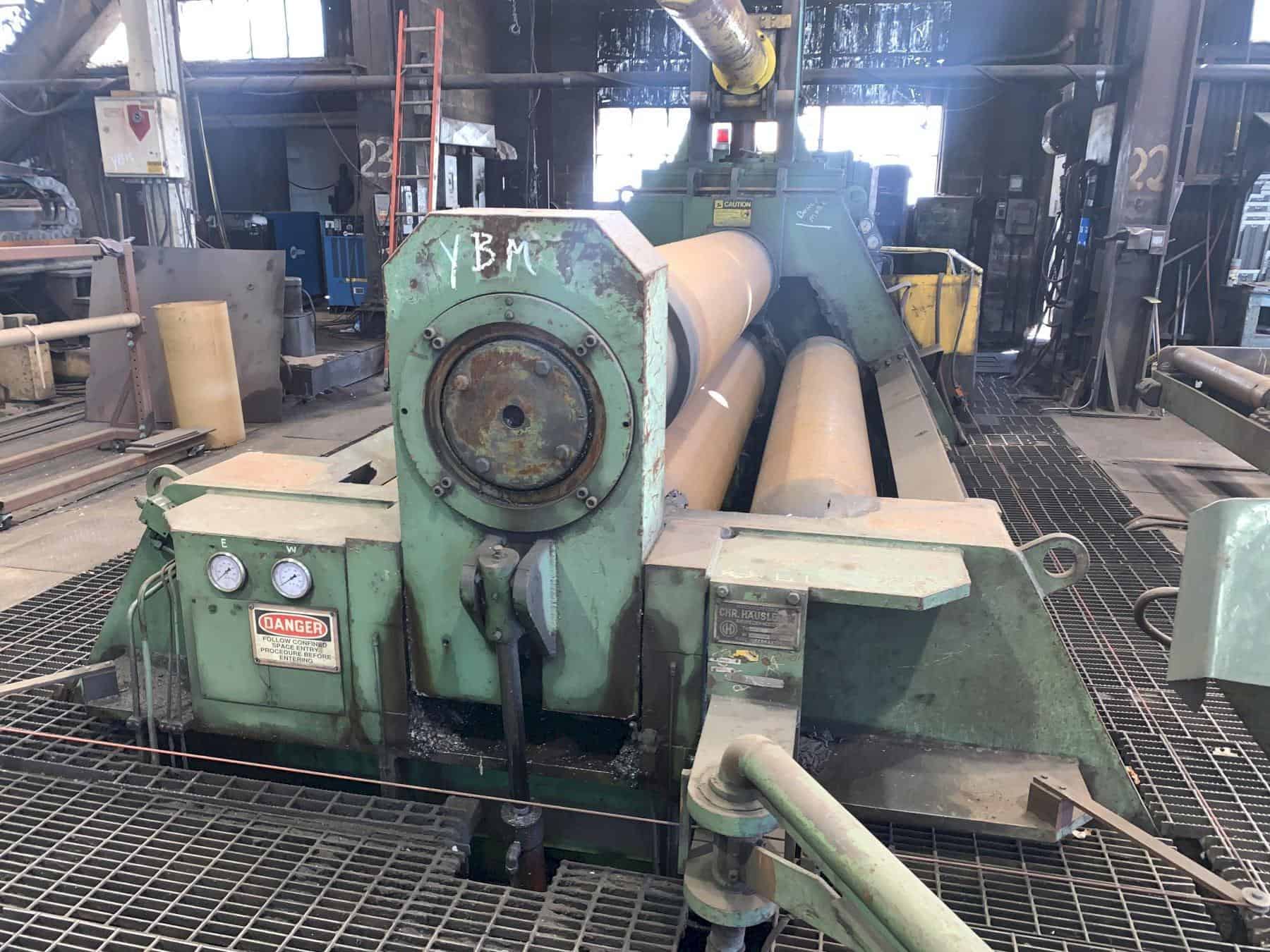

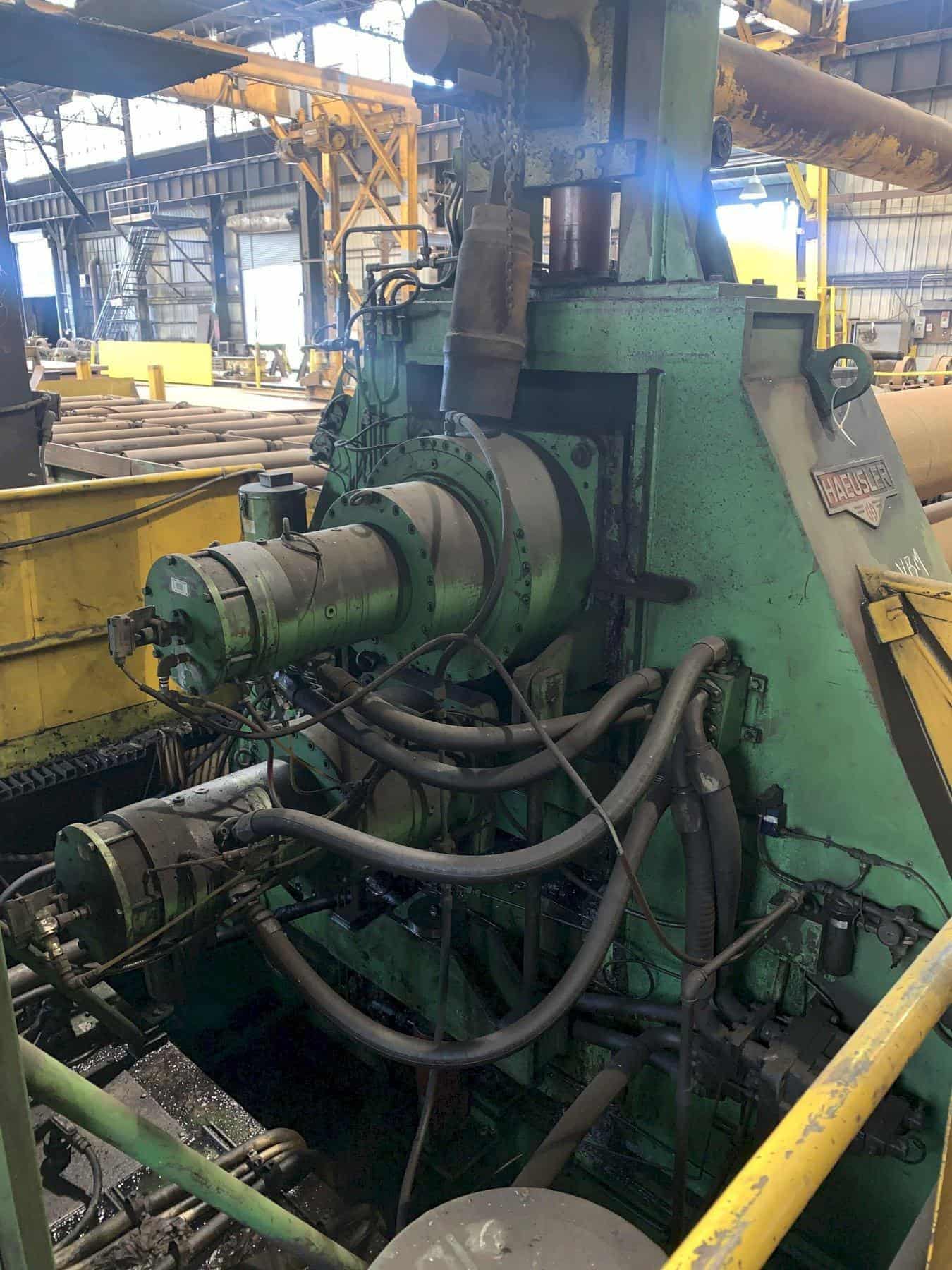

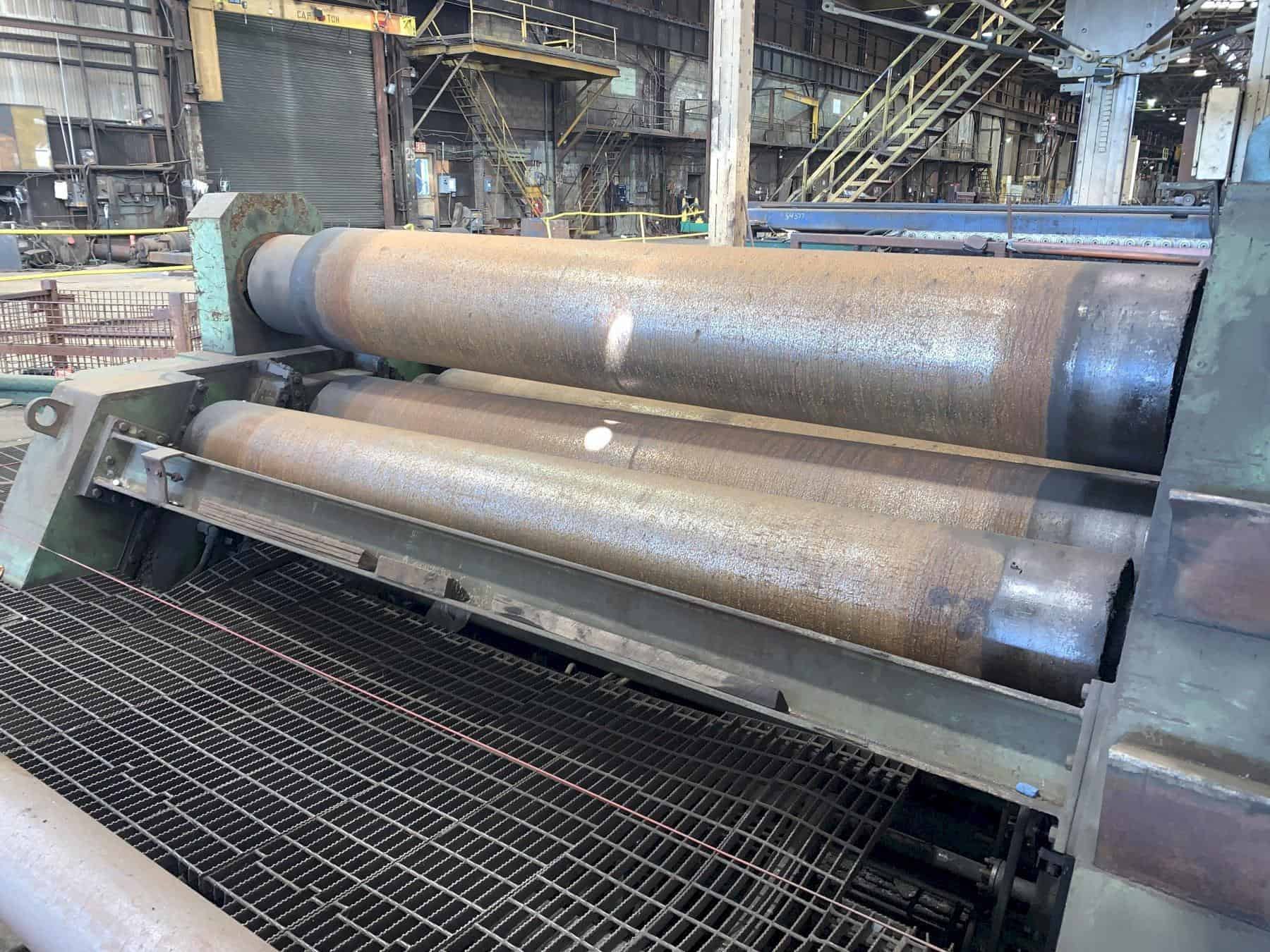

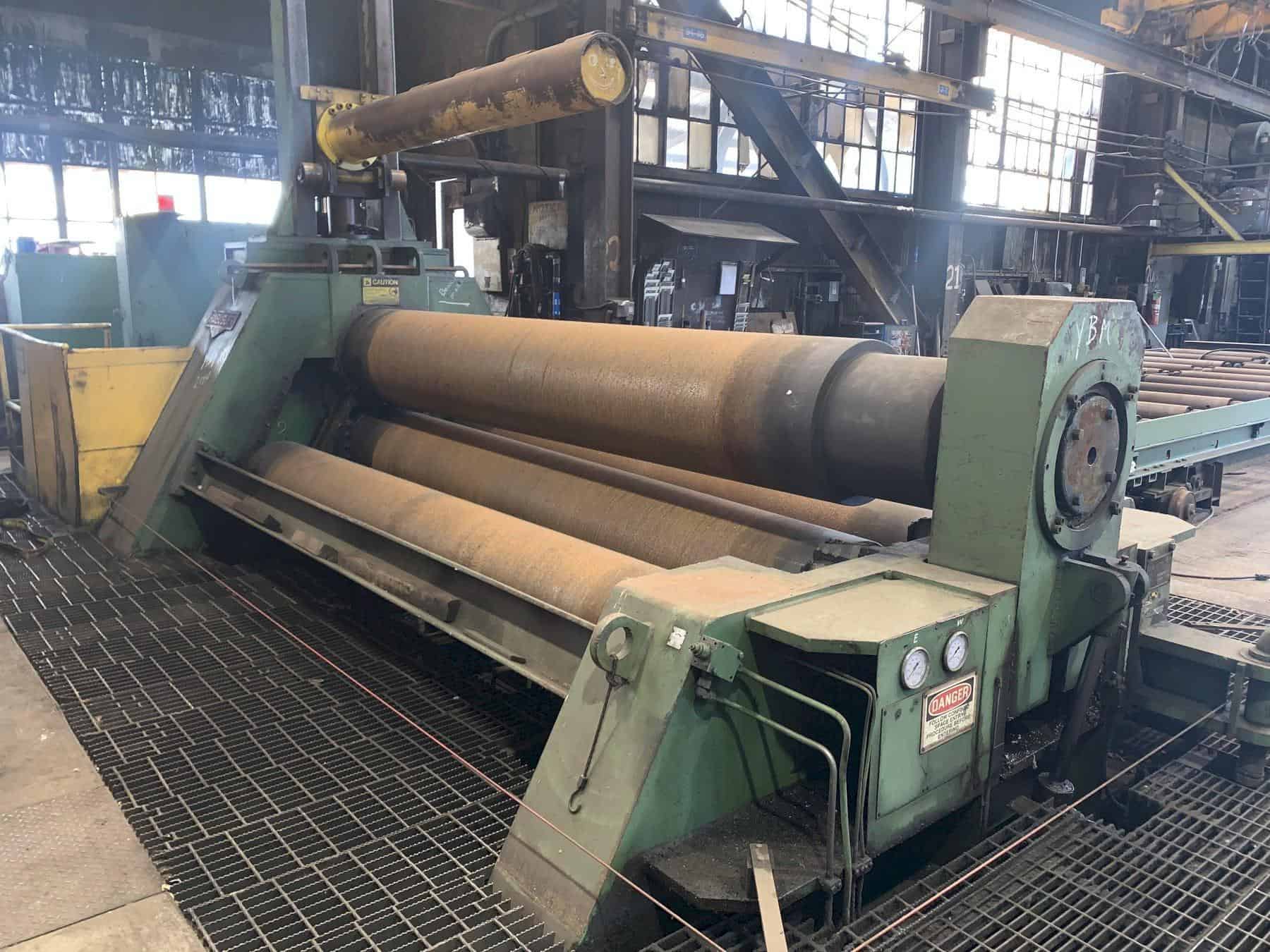

Haeusler VRM-HY
Specifications
| Capacity |
1.5" |
|---|---|
| Overall Length of Rolls |
12' |
| Number of Rolls |
4 |
| Top & Bottom Roll Diameter |
23-1/2" |
| Side Rolls Diameter |
19" |
| Plate Bending Diameter |
28" @ 1-1/4"; 36" @ 1-1/2" |
| Roll Operating Speed |
158 IPM (4m/min) |
| Motor |
150 HP |
Features
|
Air Drop End |
Automatic Speed Compensation |
|
Cone Bending Attachment |
Digital Readout Indicators |
|
Forward & Reverse Capability |
Hydraulic Power Roll Adjustment |
|
Operator Control Station |
Overarm Support Device |
*
